Name: Widely Digital Display 50KN Tensile Testing Machine With ASTM Standard
Brand: Widely Digital Display 50KN Tensile Testing Machine With ASTM Standard
SKU: WDS-50KN
Price: 1 USD
Availability: InStock
Rating: 4.6 (142 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Model Number: WDS-50KN

Power: Electronic

Function: Compression, tensile, bending, cutting and so on

Standard: GB, ISO, ASTM, DIN

Warranty: 12 months

Weight: 500KG

Name: Digital display tensile tester 50KN with astm standard

Application: Widely

Product name: Digital display tensile tester 50KN with astm standard

Certificate: ASTM

Power supply: 220V 50Hz

Color: Request

Informations de base

Certification: ASTM

Model Number: WDS-50KN

Conditions de paiement et expédition

Packaging Details: Digital display tensile tester 50KN with astm standard Standard export wooden box or as your request

Supply Ability: 100 Set/Sets per Month Digital display tensile tester 50KN with astm standard

Description de produit

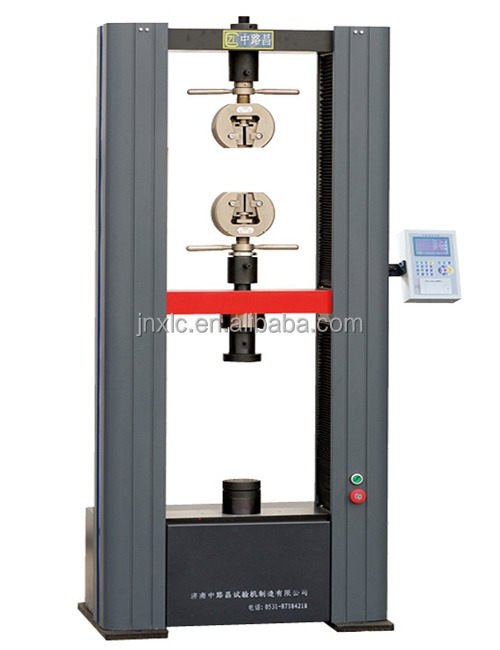

Digital Display Tensile Tester 50KN With ASTM Standard

Product Description

Main Function and Usage

The WDS series of testing machines are suitable for the tensile testing of metal and non-metal materials, and the added optional implement suiting for compression, bending, cutting , stripping, splitting and other testings.
Possessing with the function of digital display of testing force,continuously tunable testing speed, automatically shutting up power when test Specimen being snapped, and peak holding.

Adaptable Standard GB,ISO,ASTM,DIN

Main Specifications and Technical Parameter:

Model	WDS-50
Max. Testing Force	50kN
Measure Range of Testing Force	2%-100%FS
Accuracy of Testing Force	Over ±1%
Discrimination of Displacement(mm)	0.001
Accuracy of Displacement Measure	Over ±1%
Tensile Volume(mm)	600
Compression Volume(mm)	600
Testing Volume(mm)	600
Range of Speed Control(mm/min)	0.01~300
Accuracy of Speed Control	Over ±1%
Accuracy of Deformation Value Display	Over ±1%
Weight (kg)	500

Jinan XLC Testing Machine CO.,LTD is The Number One Brand of Testing Machine in China with Best Stability and Best Reliability.

Certifications

Testing Equipment

Company Information

Advantages

Packaging & Shipping

1. Packing Method: Horizontal Packing to saving moreipping cost.

2. Packing Materials: Plywood Case metting export long transport requirement.

3. Shiping Time: Shipped within 15-20 days after payment.

4. Shipping Way: Shipped by sea or air is available.

FAQ

1. Why Choose Us?

>Coaxial degree of good host: Tensile test to avoid the impact of lateral force to ensure a very high test success rate
>High rigidity of the host: low failure rate, good reliability, long service life
>Measurement and control hardware: sensors, extensometers, photoelectric encoders are brand-name configuration. High accuracy, good year stability.
>Measurement and control system software: After the National Steel Materials Testing Center review. To ensure that the export data qualified, the success rate of comparative test.
>Each hydraulic universal testing machine factory has passed the 138 program test items
>Each electronic universal testing machine factory has passed 112 program test items
>Each pressure test machine factory has passed the 76 program test items
>We promise, after-sales service for 12 months, promptly and promptly deal with all the problems aftermarket.

2.Are you a factory?

>Yes,Factory+trade,17 years focusing on test instruments field.

3. What's the product delivery time?

>Within 5 days after receive the payment

4.What's your payment terms?
>We accept T/T, L/C or Western Union.

5.What's your terms of trade?
We accept EXW, FOB, CNF, CIF, and so on.
