HD-B616 Universal Bending Compression Hydraulic Universal Tensile Testing Machine

1 Set
MOQ
$12,000.00(1 - 1 Sets) $9,000.00(>=2 Sets)
Prix
HD-B616 Universal Bending Compression Hydraulic Universal Tensile Testing Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 1 YEAR
Customized support: OEM, ODM
Model Number: HD-B616
Power: Hydraulic, Hydraulic
Load range: 20KN-1000KN
Load accuracy: ±1%
Elongation resolution: 0.01mm
Piston stroke: 250mm
Elongation accuracy: ±1%
Display mode: PC
Clamping mode: Hydraulic
Operation mode: Manual
Clamping width: 125mm
Informations de base
Model Number: HD-B616
Conditions de paiement et expédition
Packaging Details: mooden case
Supply Ability: 30 Set/Sets per Month
Description de produit
Products Description

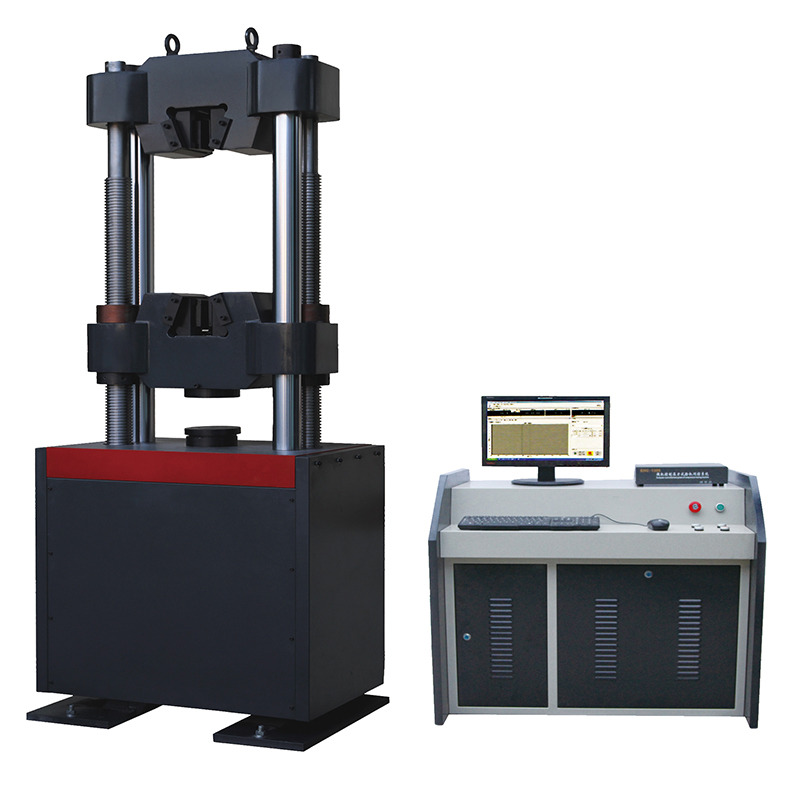

300KN 600KN 1000KN Hydraulic Universal Tensile Testing Machine with underneath type oil cylinder and four columns structure is mainly used to do tension, compression, bending, shearing test for metal materials, non-metal material. It is applied for fields of metallurgy, construction, light industry, aviation, aerospace, materials, universities,scientific research units, etc.


Applications

1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

3. Deformation under defined load: Test deformation under defined load of tested sample

4. Load under defined deformation: Test load under defined deformation of tested sampleSoftware can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,compression strength, etc.
Details Images
Product Paramenters
Measure range
4%-100%F.S
Load cell brand
Oil pressure sensor, China brand
200T (30T, 60T, 100T are optional)
Load accuracy
1% F.S
Available tensile stroke
900mm
Available compression stroke
800mm
Test speed
50mm/min
Round sample diameter
Φ15-φ70mm
Flat sample thickness
0-50mm
Flat sample width
125mm
Horizontal test space
700mm
Compression diameter
Φ204mm
Operation control
Hydraulic
Display
PC
Curves display
Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display
Max. force, speed, sample information, strength etc…
Safety features
E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
