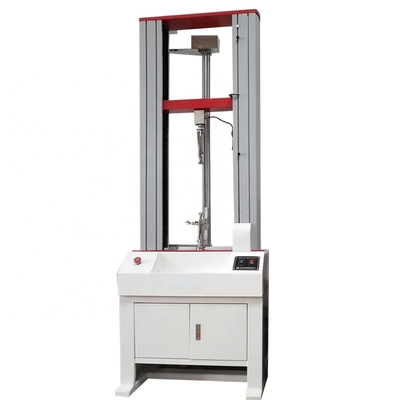

LR-C003 Two Column Tensile Testing Machine / Universal Testing Machine / Elongation Testing Machine (0-20KN) LR-C003

Test Standard

GB16491-2008,HGT 3844-2008 QBT 11130-1991,GB 13022-1991,HGT 3849-2008,GB 6349-1986 GB/T 1040.2-2006 2411,ISO 4587,ISO/TS 11405,ISO 527,ASTM E4,BS 1610,DIN 51221,ISO 7500,EN 10002,ASTM D628,ASTM D638,ASTM D412

Use

Suitable for aerospace, petrochemical industry, machinery manufacturing, metal materials and products, wire and cable, rubber, paper and plastic color printing packaging, adhesive tapes, bags handbags, textile fibers, textile bags, food, pharmaceutical and other industries.To test the physical properties of the various materials and finished products, semi-finished products, choose a variety of fixture to do tensile, compressive, hold, hold pressure, bending, tear, peel, adhesion and shear test.It is an ideal testing and research equipment for factories, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.

Features:

1. The machine has completely changed the new material testing machine for the whole calculator operation, which was developed from the shortcomings of the conventional material testing machine, which is bulky, complex and complicated.

2. The structure adopts the steel plate and aluminum extruded plate with advanced baking paint, with high precision, low resistance, seamless precision screw and guiding column, which improves the load efficiency and structural rigidity.

3. The control system adopts the motor of the whole digital communication server to ensure that the transmission system is high in efficiency, stable in transmission, low in noise and accurate in speed.

4. Microcomputer system by commercial calculator as the main control machine, cooperate with the company's QCTech testing software, can complete all of the test parameters setting, working state control, data acquisition and processing analysis, result display and printing output;

5. Dedicated measurement and control system is specially designed for microcomputer electronic universal testing machine.It can stretch, compress, bend, shear, tear and peel off test.The data acquisition, preservation, processing and printing test results of PC and interface board are adopted.It can calculate the maximum force, yield force, average stripping force, maximum deformation, yield point, elastic modulus and other parameters;It can perform curvilinear processing, graphical graphical interface, flexible data processing, ms-access database support, making the system more powerful.

Parameters and specifications

A. Software Technical Parameters:

1. Adopt the Windows work platform, and the parameter setting is handled in the form of dialog box, and the operation is simple;

2. Using a single image operation, no screen switching is required;

3. The software interface has many languages in Chinese and English.

4. Self-regulation test form mode;

5. Test data can be directly called in the main screen;

6. The data comparison of multiple curves can be carried out by means of translation and comparison.

7. There are various measuring units of KGF, LBF, N, KN, KPa and Mpa.

8. Automatic return function;

9. Automatic calibration function, with input direct switching;

10. Function of self-defining test method;

11. Experimental data operation analysis function;

12. Functions of automatic magnification ratio of 1, 2, 5, 10, 20, 50 and 100, in order to achieve the most appropriate size of the graph automatic switching, data acquisition frequency of 6000HZ;

B. Hardware Technical Parameters:
